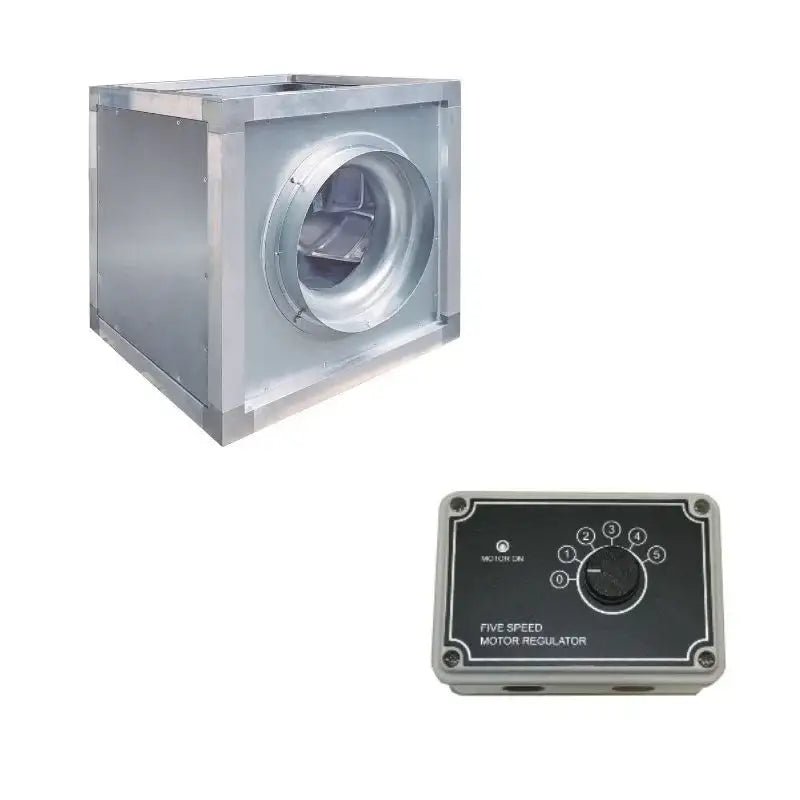

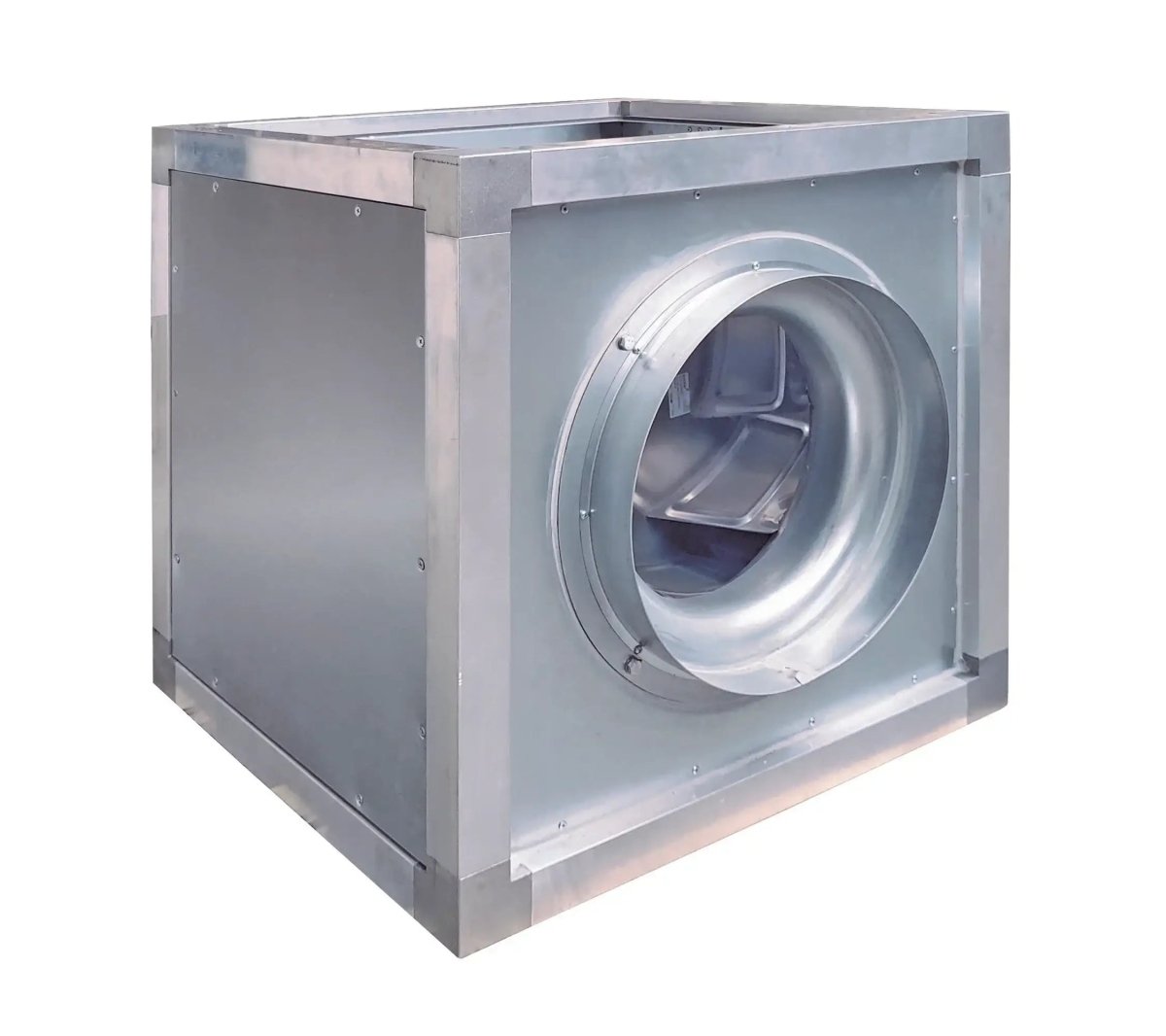

EC-Airbox Type GBV 10000 incl. Speed Controller Type WPO 5-Stage & Closed Panel
Inkl. MwSt.: €2.879,68
EC-Airbox Type GBV 10000 incl. Speed Controller Type WPO 5-Stage & Closed Panel is backordered and will ship as soon as it is back in stock.
Information
Information
Please note that some products may only be installed by a qualified professional to ensure proper function and safety.
Quality standard
Quality standard
Our products are manufactured in compliance with the current hygiene and safety standards to ensure the highest quality and safety for our customers.
Description
Description
-highly efficient EC motor with controller outside the airflow - variable outlet position - double-walled sound-insulated housing - housing with condensate tray and 1" drain - including sealed intake nozzle, inspection switch, and W-Connect connection as standard - inspection door with quick-release latch
Voltage / Frequency: 400 V / 3 ph / 50-60 Hz
Power: 2374 W
Current: 3.7 Amp
Speed: 1990 rpm
Protection class: IP55/ISO Cl. B
Motor protection: integrated motor protection
Max. conveyed medium temperature: +120 °C
Motor type-efficiency/adjustable: EC/ adjustable with potentiometer
max. air volume flow: 10008 m3/h
Sound pressure level at 3m: 68 dB (A)
Housing material: galvanized steel sheet/frame aluminum

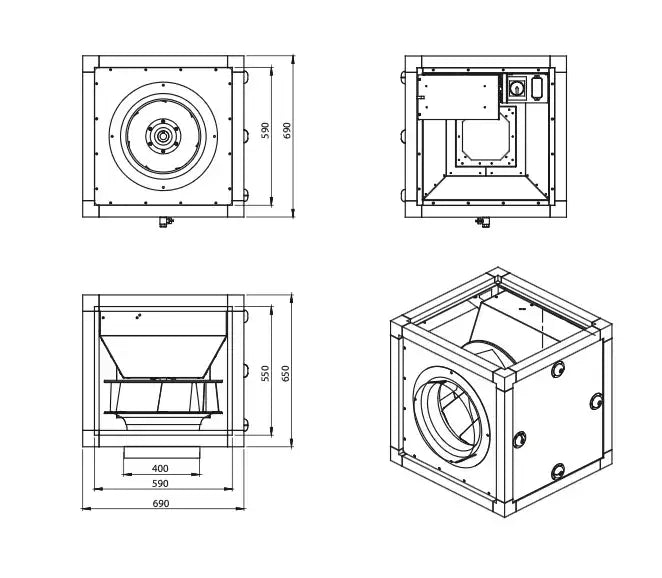

External dimensions: 690x690x650 mm
Connection suction side pipe size DN: 400 mm
Weight: 69.0 kg
W-Connect size: M-690
- Speed control unit type WPO 5-level
Potentiometer for GL FU + EC motors, IP56
Surface-mounted, 5-level, LED, offset adjustment
5 levels can be individually adjusted on the circuit board
- Panel closed
