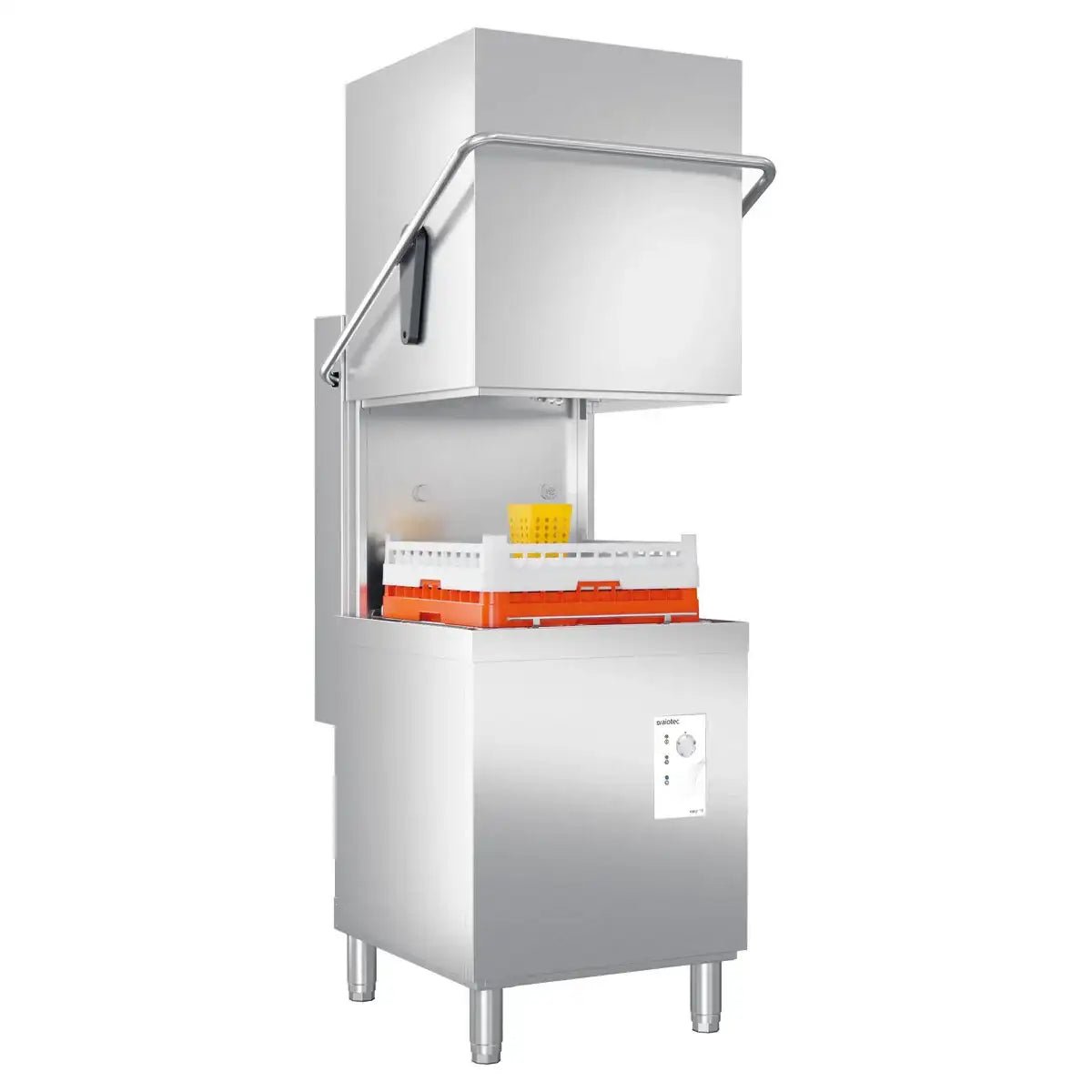

EASYLINE Hood Dishwasher 50x50 / 400 Volt - Model: VT-EX HW54 DRD

Discover the high-quality hood dishwasher from the VT-EX series with an electromechanical control panel for easy and efficient operation. With three different wash cycles, up to 40 baskets can be cleaned per hour. This machine is equipped with a backflow preventer and a safety thermostat in the wash tank and boiler to ensure the highest safety standards and provide reliable performance.

Version

• Product dimensions (W×D×H): 630x750x1482 mm
• Model: VT-EX HW54 DRD
• Basket dimensions (W/D): 500x500 mm
• Insertion height: 440 mm
• 2 Wash Cycles: 90/180 seconds
• Endless program with manual stop
• Washing temperature: 60°C
• Final rinse temperature: 85°C
• Washing capacity: up to 40 baskets per hour

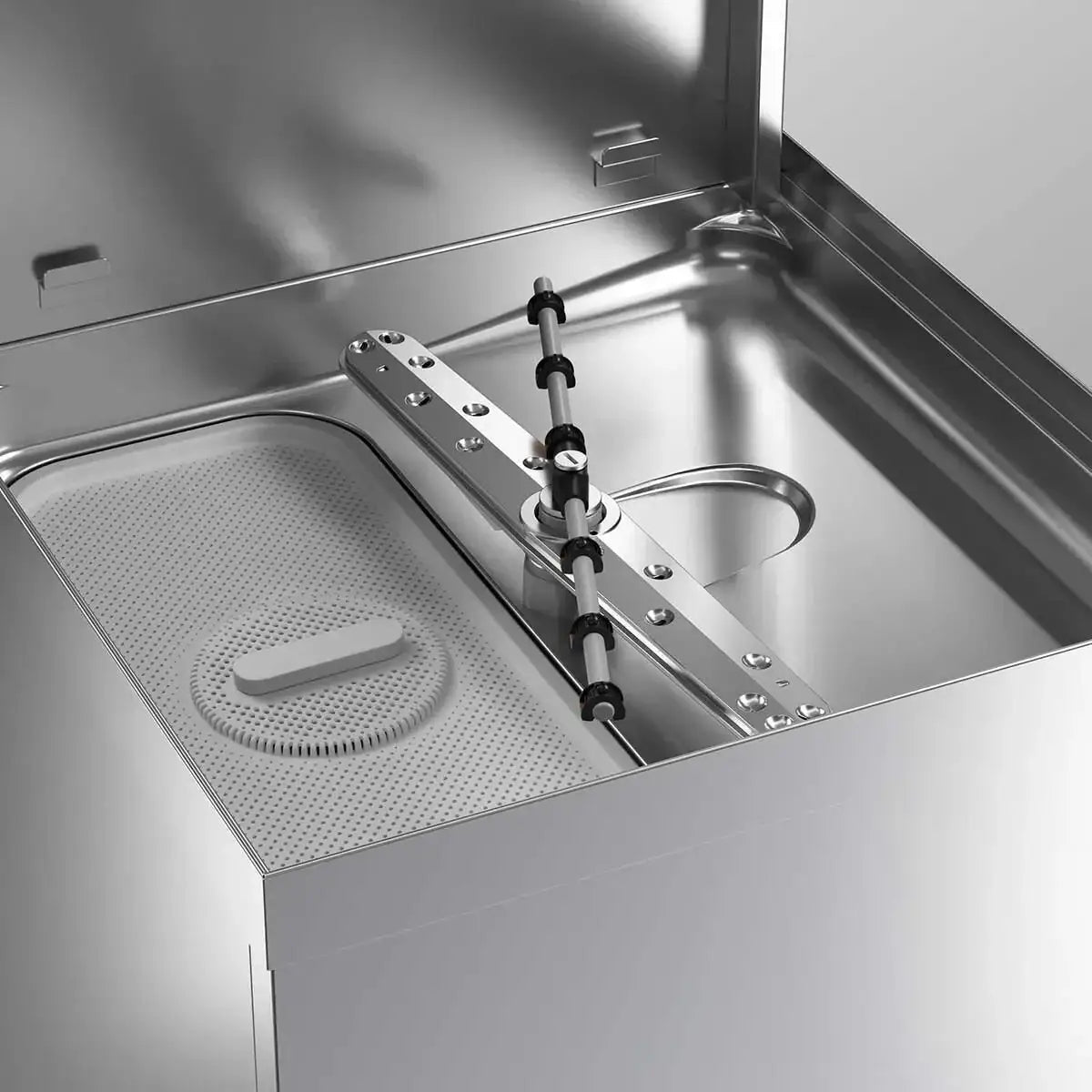

• 2 stainless steel wash arms (top and bottom)
• Includes anti-backflow valve
• Temperature display with safety thermostat
• Height-adjustable feet
• with built-in detergent dosing pump
• with built-in drain pump

Included in delivery

• 1 x plate basket
• 1 x universal basket
• 1 x small cutlery basket

Information on heating capacity

• Tank: 4.5 kW
• Boiler: 6 kW
• Pump: 0.75 kW

Information on water consumption

• Tank volume: 33 liters
• Boiler volume: 7 liters
• Tank & Boiler are filled only once when the machine is restarted.
• Approximately 2.6 liters per rinse cycle at a water pressure of 2 bar
• The water pressure should be between 2-4 bar

Note: The commissioning of this device must be carried out by a certified professional company!
